HotSwap BOT Puma/Lynx 200 Series

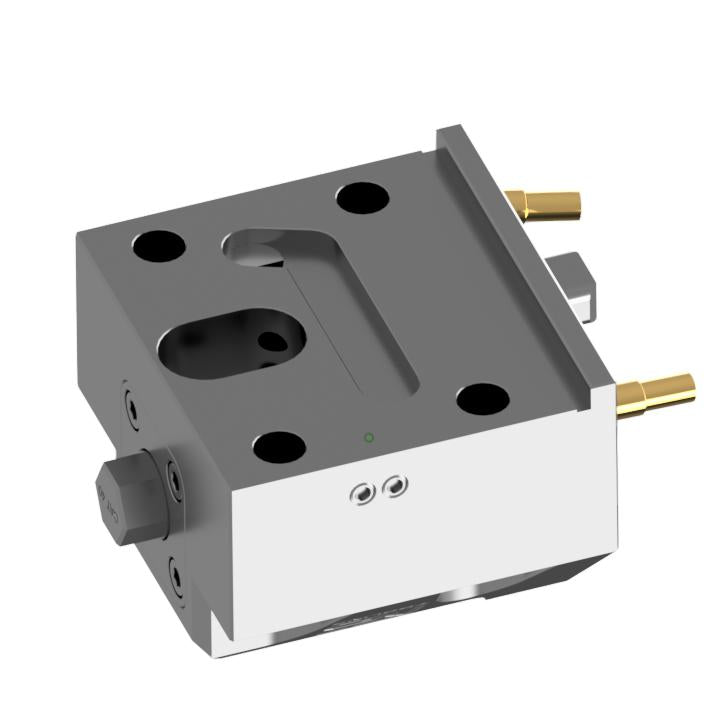

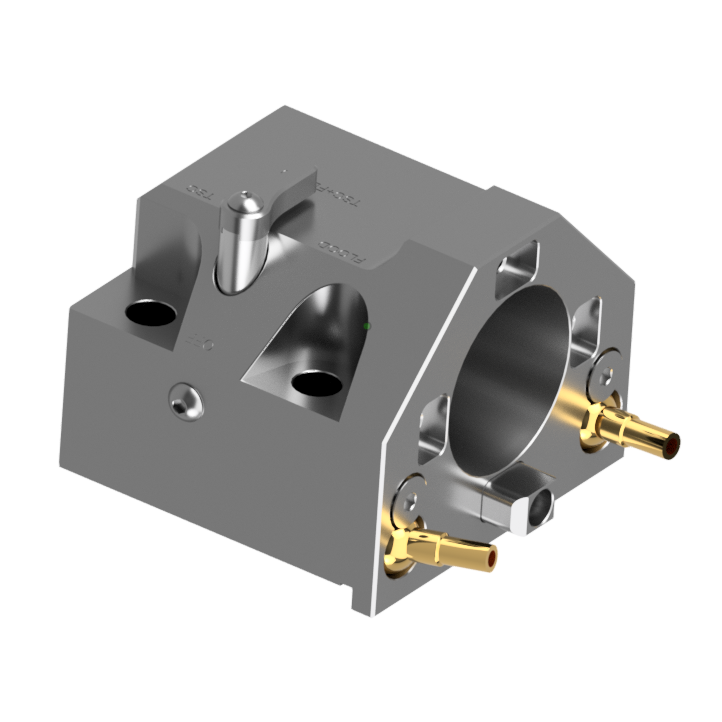

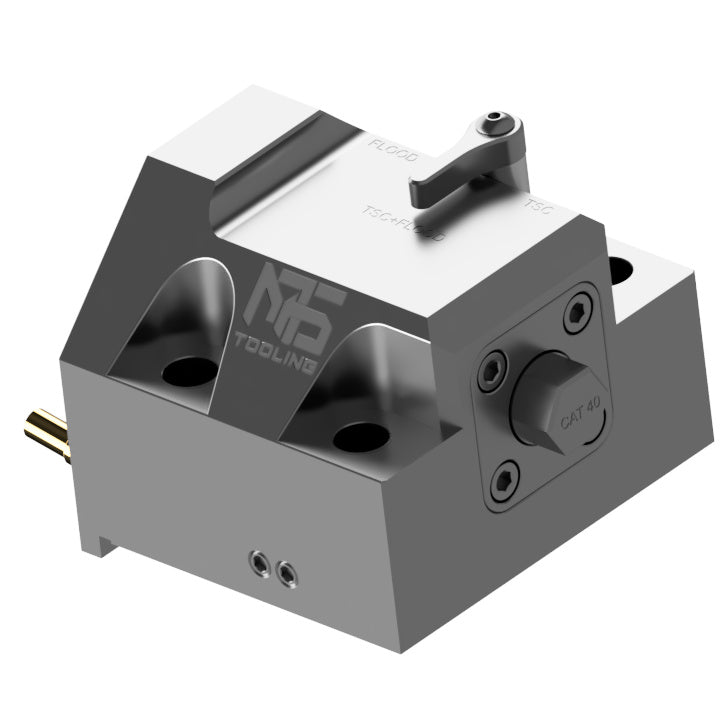

HotSwap Tool Block

Fits DN Solutions (Doosan, Daewoo) Puma/Lynx 200 series 72mmx24mm Mounting Pattern.

The HotSwap Tool Block is a modular, rigid, and innovative system that transforms how you set up your CNC lathe letting you use the milling tool holders you already own for faster, simpler, and more repeatable changeovers.

With HotSwap, you can keep tools pre-set in your standard CAT or BT holders and swap them in and out of your lathe in seconds while maintaining your tool zero and offsets. No more re-touching off or wasting time resetting tools between jobs. This system is designed to minimize setup time, streamline your workflow, and eliminate the need for dedicated lathe-only tooling.

Key Features:

• Works with the tooling you already have — use your existing CAT or BT milling holders in your lathe.

• Fast, repeatable changeovers — maintain your tool zero and offsets after initial setup.

• Rigid & precise — engineered for maximum rigidity and repeatability in demanding turning applications.

• Supports both CAT and BT — easily switch between CAT and BT tool holders of the same taper by changing the pull stud.

• Integrated 4-position locating lug — index your tool in 90° increments to suit different setups.

• Integrated 4-position coolant valve — choose between thru-spindle, flood, both, or off with a simple lever adjustment.

• Designed for high-pressure coolant — up to 1000 PSI for demanding cutting conditions.

• Laminar Flow Coolant Nozzles included — delivers a powerful, precisely-aimed stream of coolant exactly where you need it.

• User-serviceable design — easy to clean and maintain, with all replacement parts readily available.

By combining ease of use, rigidity, and modular compatibility with the tools already on your shelf, HotSwap helps you reduce downtime, improve consistency, and get more parts off your lathe faster.

Patent pending.
