14mm Ball Laminar Flow Coolant Nozzle | CNC Precision Nozzle | M08 Series
A precision coolant nozzle that actually goes where you aim it.
The M08 14mm Ball Laminar Flow Coolant Nozzle drops directly into any standard 14mm ball-seat connection and replaces your existing standard nozzle with a tight, focused, high-velocity stream you can point exactly at the cutting edge.
What "laminar flow" actually means. When coolant leaves the end of a standard coolant nozzle it is so turbulent the coolant separates into droplets and spreads out into a cone, meaning most of it doesn’t even hit the tool. Laminar flow just means the coolant exits as a glass-smooth, unbreaking stream instead of a turbulent spray. You can aim it like a laser. More coolant reaches the cut. Heat drops. Chips break and clear. Tool life goes up. (Watch the comparison video — the difference is obvious in three seconds.)
Why machinists are switching:
- Get more out of your existing coolant system. A unified jet delivers more cutting-edge cooling per gallon pumped; no need for higher pressure or bigger pumps to get the result.
- Better chip control. A coherent jet acts as a hydraulic wedge, lifting chips off the rake face, breaking them, and flushing them out of the cut.
- Longer tool life and cleaner finishes. Heat is the enemy. Hit it where it's generated and inserts last longer, surfaces come out cleaner.
- Lights-out friendly. Fewer chip nests, fewer recut surprises, fewer 2 a.m. crashes.
- Drops into what you already own. Standard 14mm ball seat fits most common CNC lathe and mill ball-seat coolant manifolds.

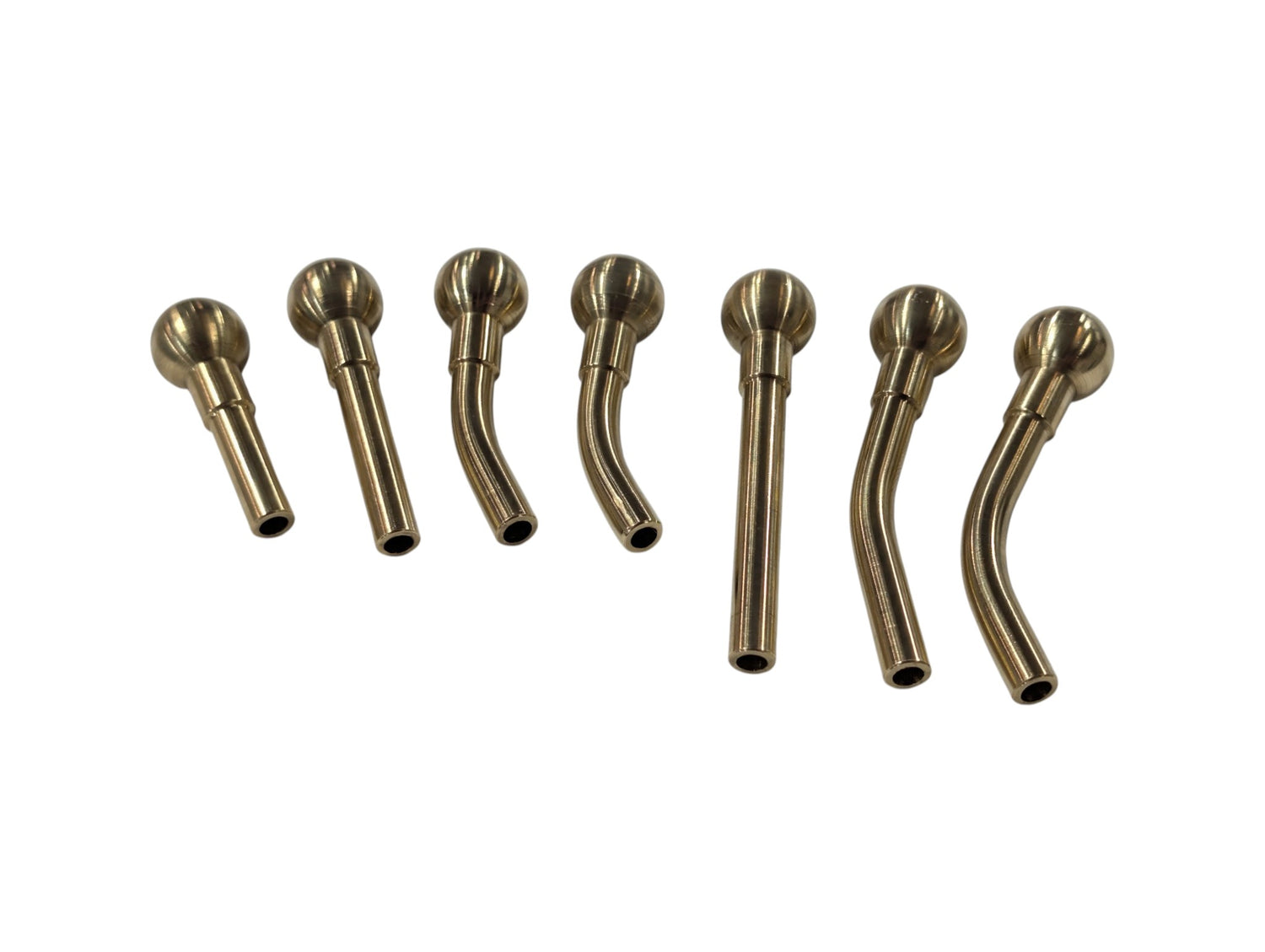

Choose your configuration:
Pick the length you need to reach the cut, and the angle you need to clear tools, work holding and part geometry.
| Length | Best For |
|

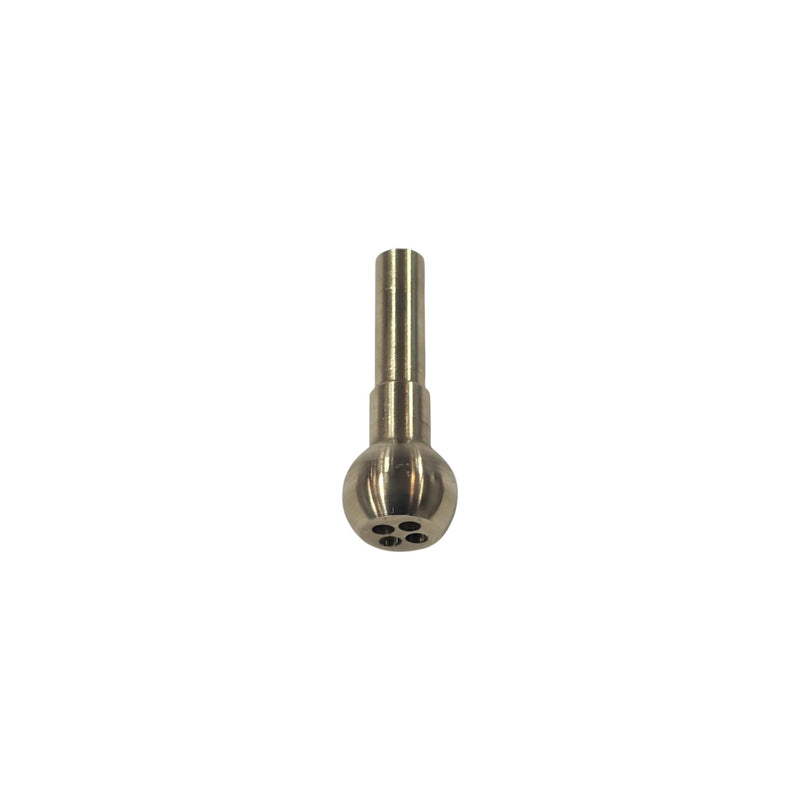

Short |
Deep drilling, short / low stick-out tools, offered in Straight only. |
|

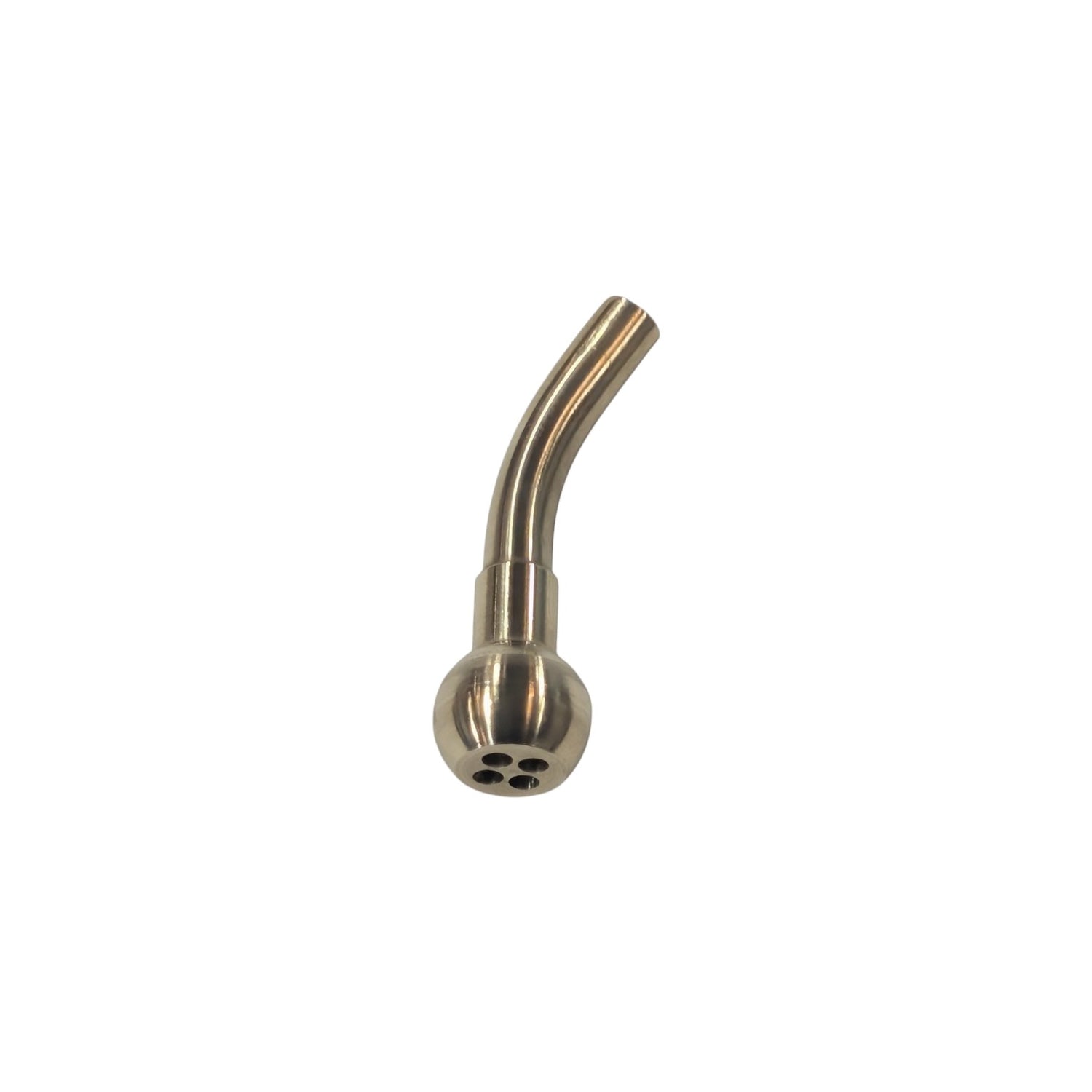

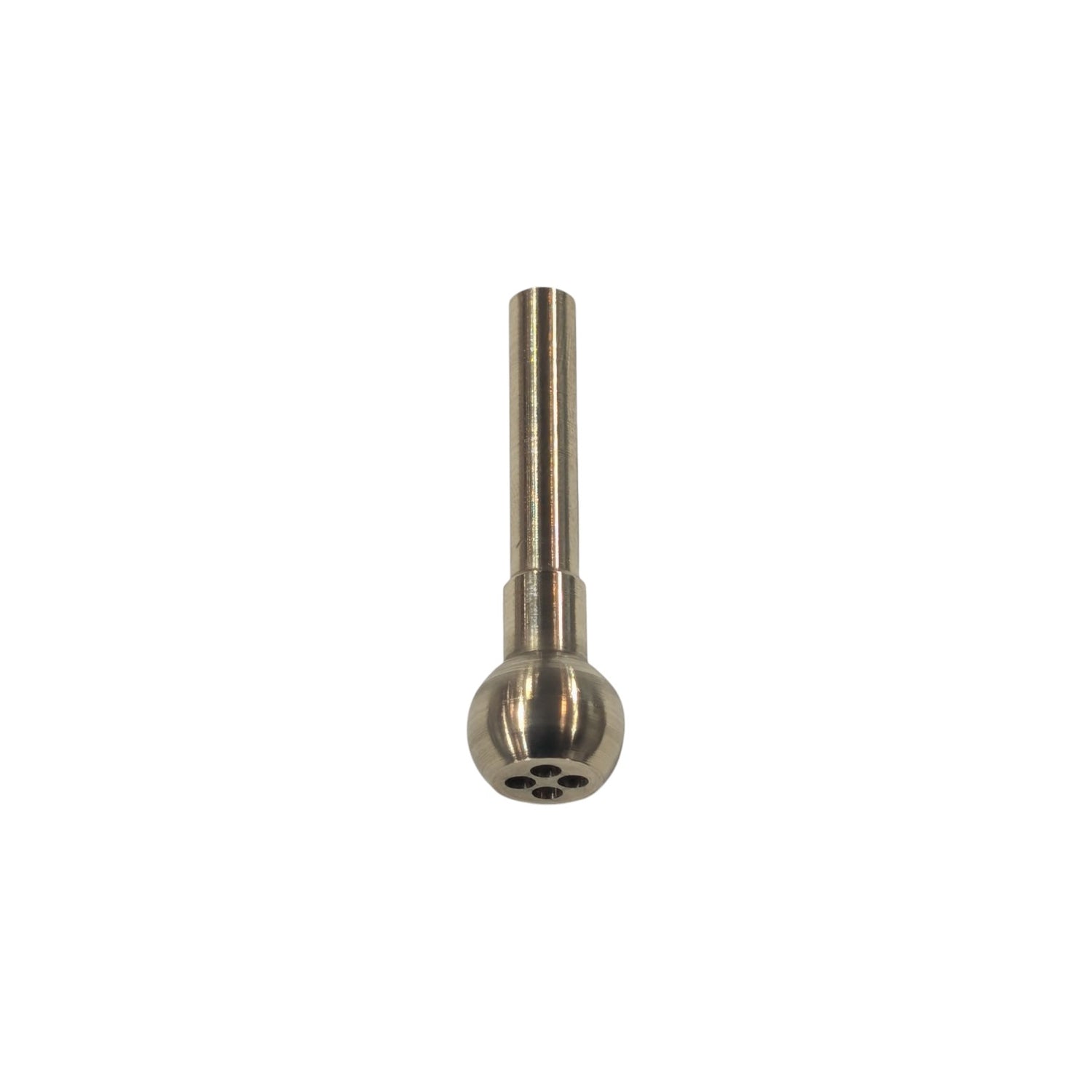

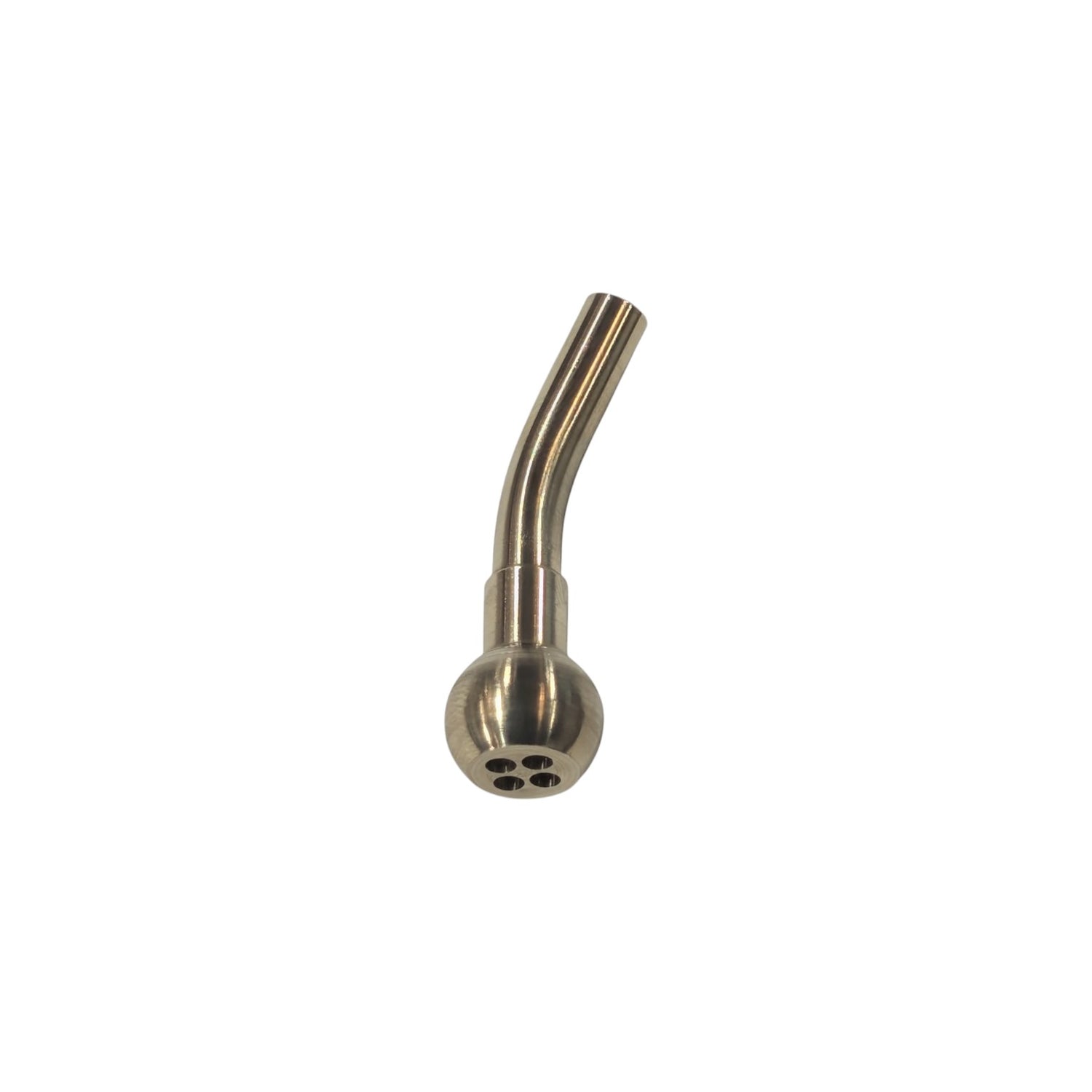

Medium |
General turning and milling, offered in Straight, 25°, or 40°. |
|

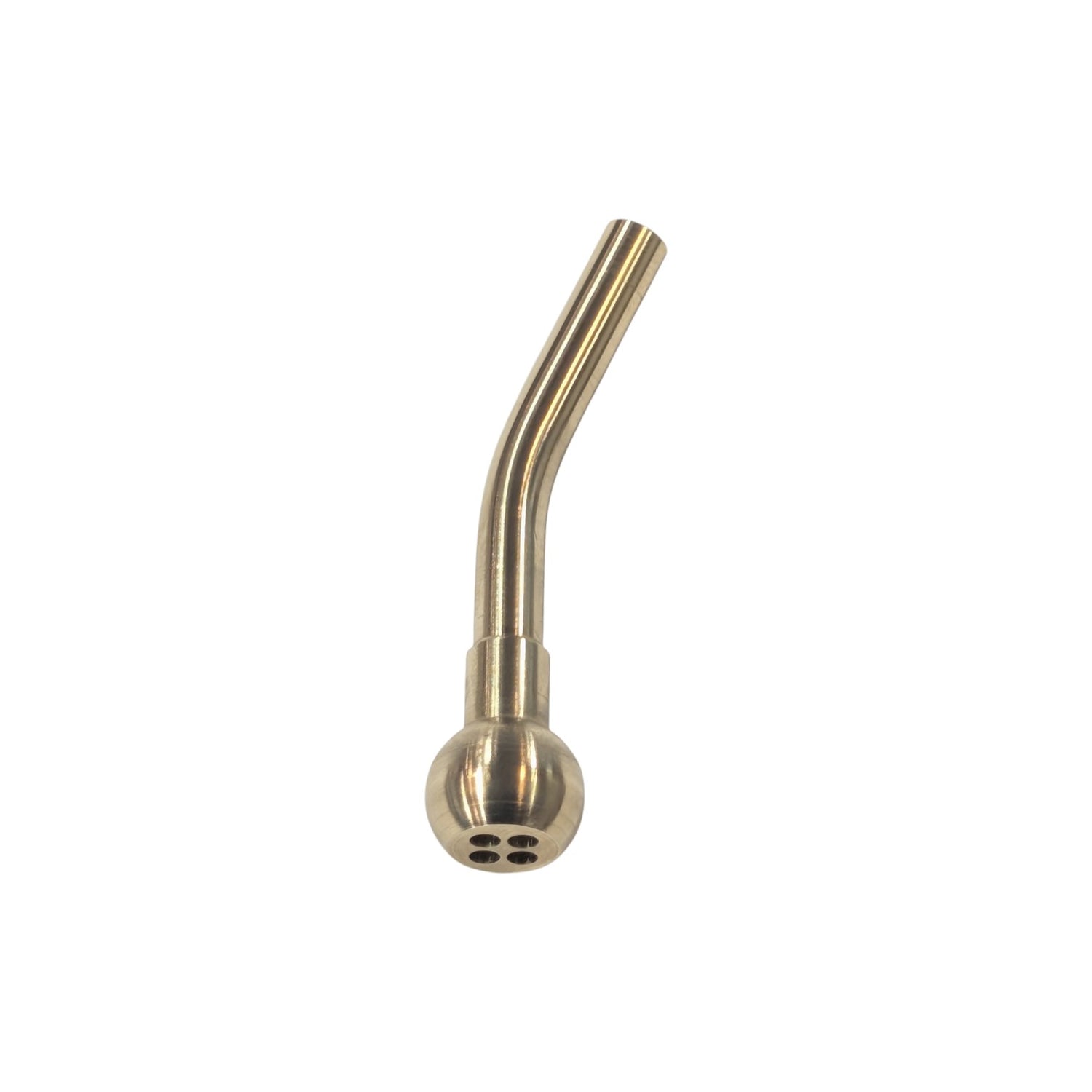

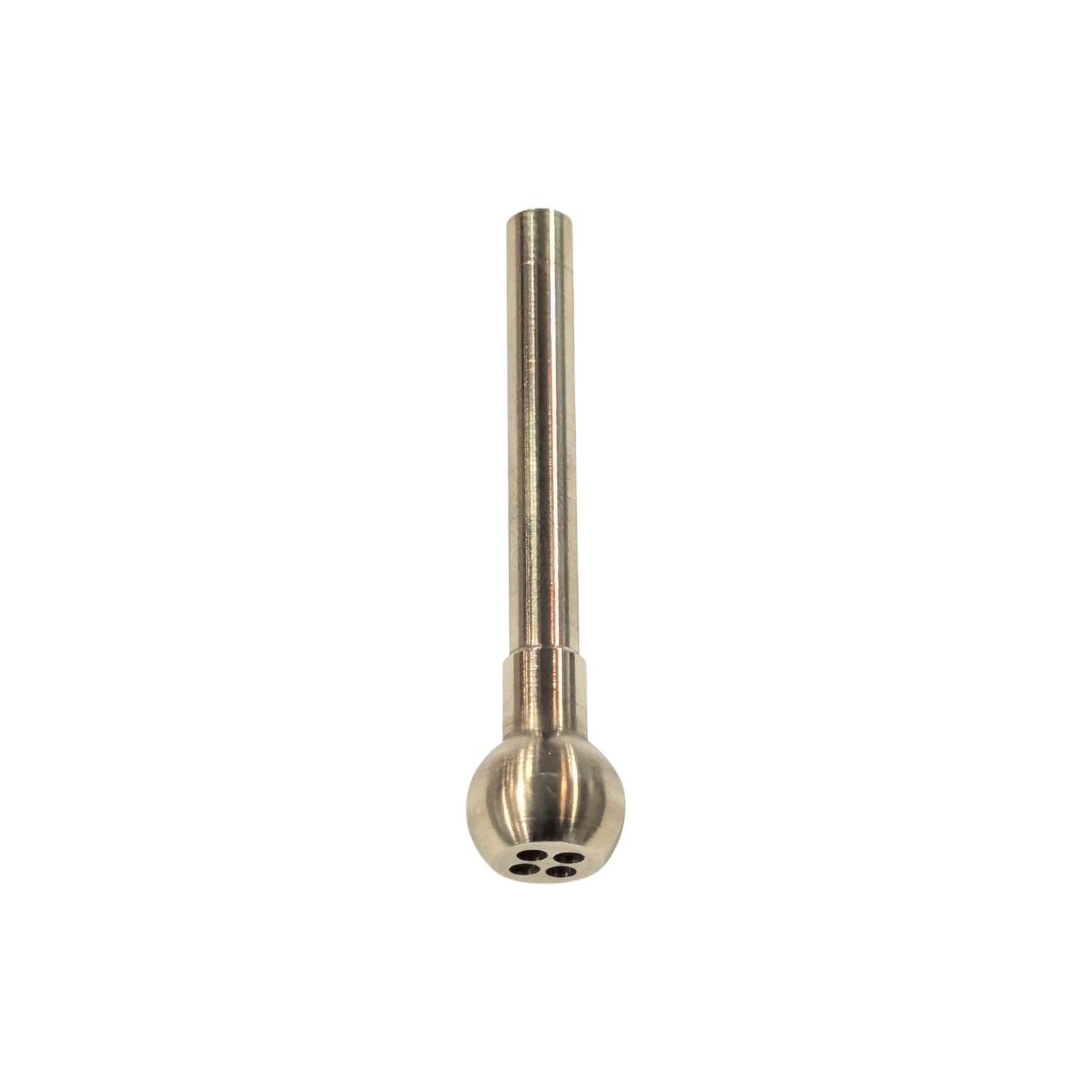

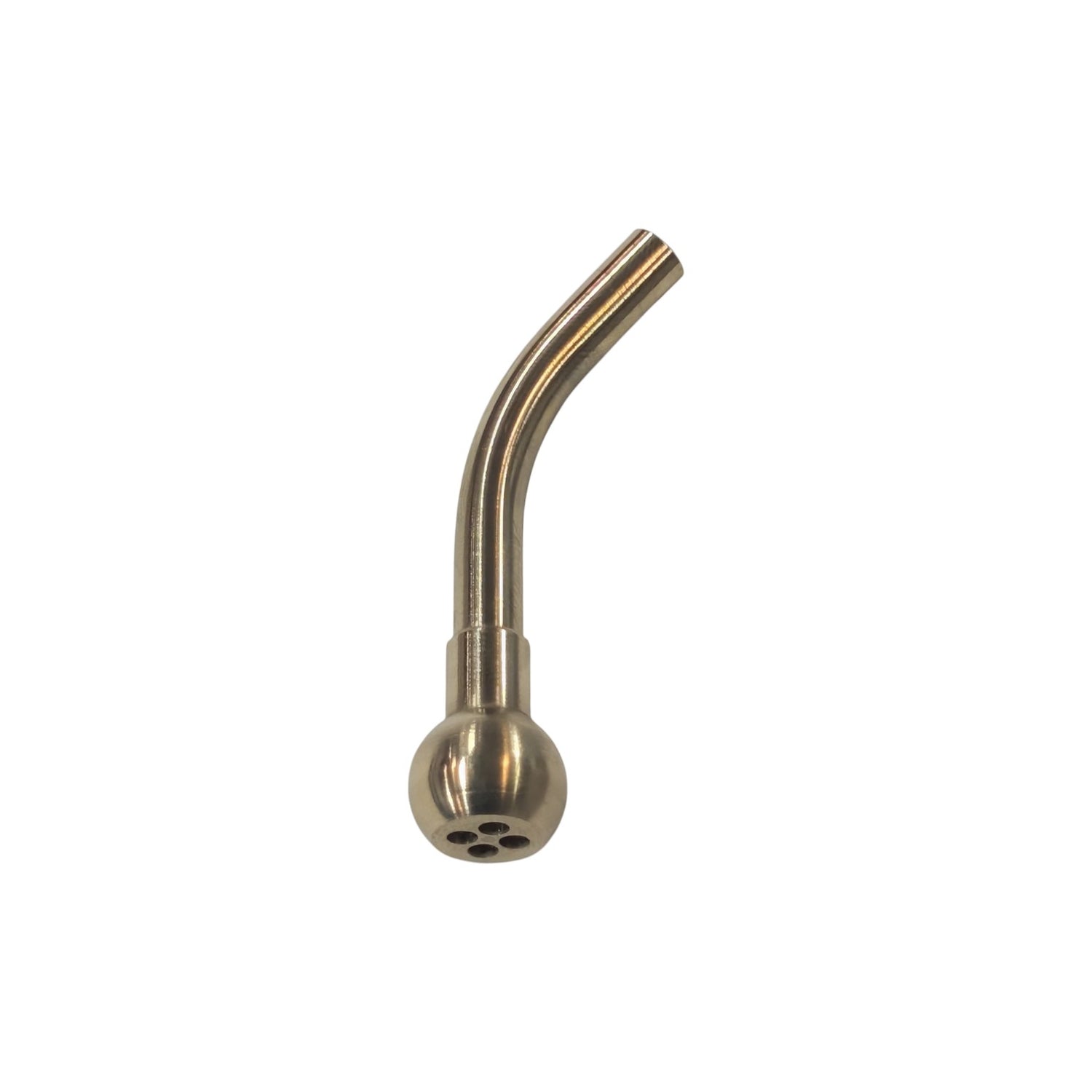

Long |
Long tools, offered in Straight, 25°, or 40°. |
Specifications:
- Material: Solid brass
- Ball diameter: 14 mm
- Tested pressure: 1,000 PSI (water sol coolant / oil)
- Origin: Manufactured in the USA
We recommend running filtered coolant with these nozzles. They can tolerate 1-2 of the back holes being blocked by chips, but you will notice a decrease in performance.
Patent Pending
Sold individually.
Need a full turret kit, a production-floor rollout, or volume pricing? Contact us for a quote.
